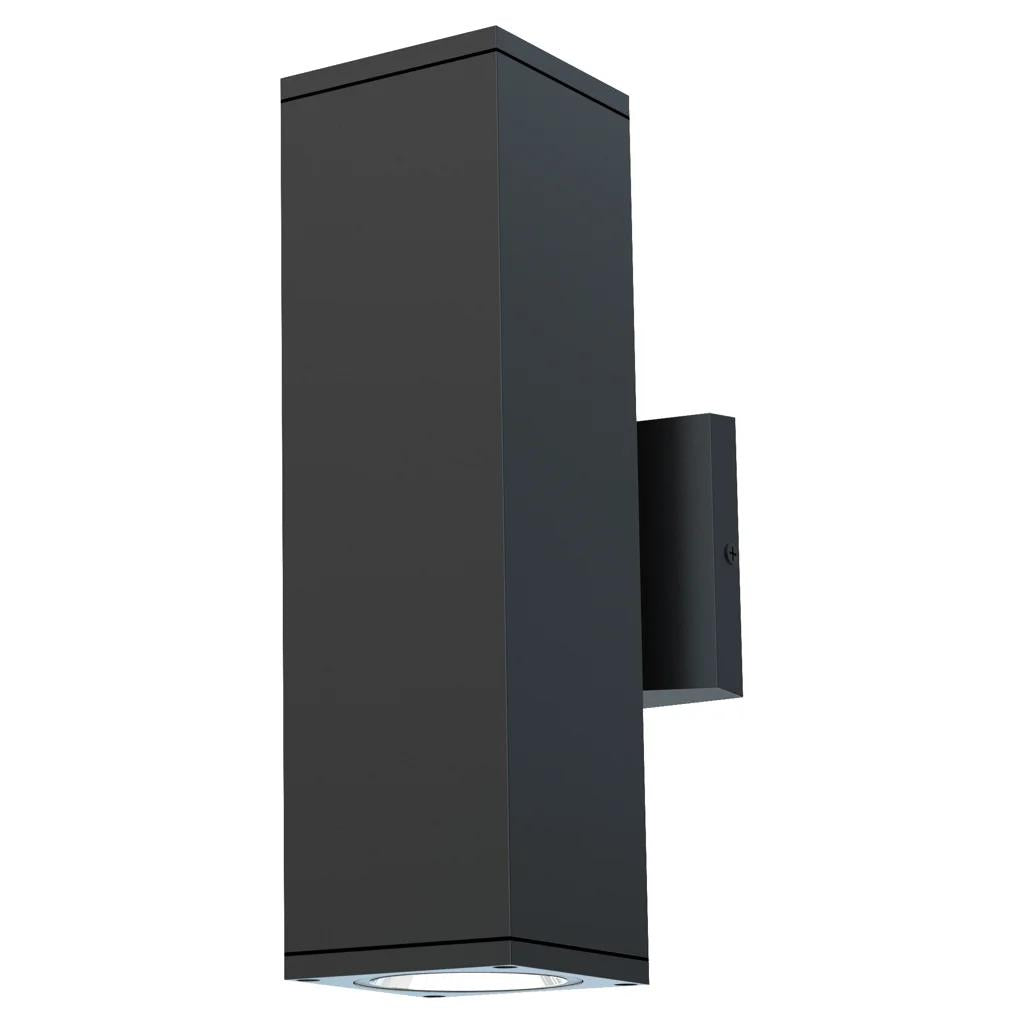

SMLJXL-BD90-T24W-5CCT
    Modern Outdoor Wall Light

    SMLJXL-BD90-T24W-5CCT

    $120
    $140

    Instock

    5-Stargoogle_review
    • In-Store Purchase Only
    ASK A QUESTION
    Fixture Size & Weight:
    6.2"L × 3.5"W × 11.8"H (16 × 9 × 30 cm)
    Fixed height – 11.8"  (30 cm)
    Weight: Not available
    Light Output:
    Integrated LED  – 24 Watts   – 5CCT (2700K/3000K/4000K/5000K/6500K)
    Finish & Materials:
    Black finish – Aluminium
    Suggested Applications:
    OUTDOOR: Patio, Balcony, Garage Exterior, Pool Area, Exterior Wall

    SPECIFICATION SHEET

    Print / Save as PDF
    SPARKLE LIGHT
    SPECIFICATION SHEET

    Outdoor Wall

    SMLJXL-BD90-T24W-5CCT

    SMLJXL-BD90-T24W-5CCT
    BEFORE INSTALLATION
    Inspect the fixture for any physical damage.
    Confirm that all parts and hardware are included.
    Test the fixture before permanent installation.

    If you notice any damage, missing parts, or functional issues, DO NOT INSTALL the fixture. Please contact Sparkle Light at (905) 294-9191 or email showroom@sparklelight.ca for assistance.
    DIMENSIONS
    Fixture Size:
    6.2"L × 3.5"W × 11.8"H (16 × 9 × 30 cm)
    Chain Length:
    No Chain
    Rod Length:
    No Rods
    Wire Length:
    Total Wire Length – 12" (30 Cm)
    Overall Height:
    Fixed height – 11.8" (30 cm)
    Canopy Size:
    "L×"W×"H (0×0×0 cm)
    Canopy Shape:
    Square
    LAMPING
    Bulb Base:
    Integrated LED
    Bulb Included?
    Yes (LED Integrated)
    Max. Wattage per Bulb:
    Not Applicable
    Bulb Count:
    Fixture Total Wattage:
    24 Watts
    Input Voltage:
    120V
    Power Source:
    Hardwired
    Fixture Total Lumens:
    Varies based on the bulb selected for the fixture.
    Dimmable?
    No
    Colour Temperature (CCT):
    5CCT (2700K/3000K/4000K/5000K/6500K)K
    PRODUCT DETAILS
    Assembly Required?
    No assembly needed, ready to install
    Material:
    Aluminium
    Residential Applications:
    Not specified
    Outdoor Applications:
    Patio, Balcony, Garage Exterior, Pool Area, Exterior Wall
    Commercial Applications:
    Not specified
    Warranty:
    1 Year
    Shade / Diffuser Colour:
    Fixture Style:
    Modern – Clean lines, sleek design
    Slope Ceiling Compatible?
    Not compatible with slope ceilings
    Fixture Shape:
    Rectangular
    Fixture Type:
    Outdoor Wall
    Mounting Surface:
    Wall
    Low Ceiling Compatible?
    Not suitable for low ceilings
    Fixture Finish:
    Black
    Location:
    Wet (Outdoor)
    Fixture Environment:
    Certification:
    cETL

    INSTALLATION GUIDE

    Print / Save as PDF
    SPARKLE LIGHT
    INSTALLATION GUIDE
    Outdoor Wall

    SMLJXL-BD90-T24W-5CCT

    BEFORE INSTALLATION

    Inspect the fixture for any physical damage.

    Confirm that all parts and hardware are included.

    Test the fixture before permanent installation.

    If you notice any damage, missing parts, or functional issues, DO NOT INSTALL the fixture. Please contact Sparkle Light at (905) 294-9191 or email showroom@sparklelight.ca for assistance.
    IMPORTANT SAFETY INFORMATION

    Turn off power at the circuit breaker before installation or servicing.

    Install the fixture only as specified in the provided instructions.

    Installation must be performed by a licensed electrician.
    MAINTENANCE & CARE

    Clean with dry or slightly damp cloth.

    Do not use abrasive cleaners.
    PACKAGE CONTENTS
    WIRING

    Use standard wire connectors to make all wire connections.

    Twist connectors until wires are tightly joined.

    Wrap each connection with approved electrical tape and carefully stuff all the connected wires into junction box.
    Wiring
    INSTALLATION STEPS

    Turn off power at circuit breaker.

    Attach mounting bracket to junction box.

    Connect wires according to color coding.

    Install & Secure fixture body with provided screws.

    Restore power.
