SML429134-BK

SPECIFICATION SHEET

Print / Save as PDF

SPARKLE LIGHT

SPECIFICATION SHEET

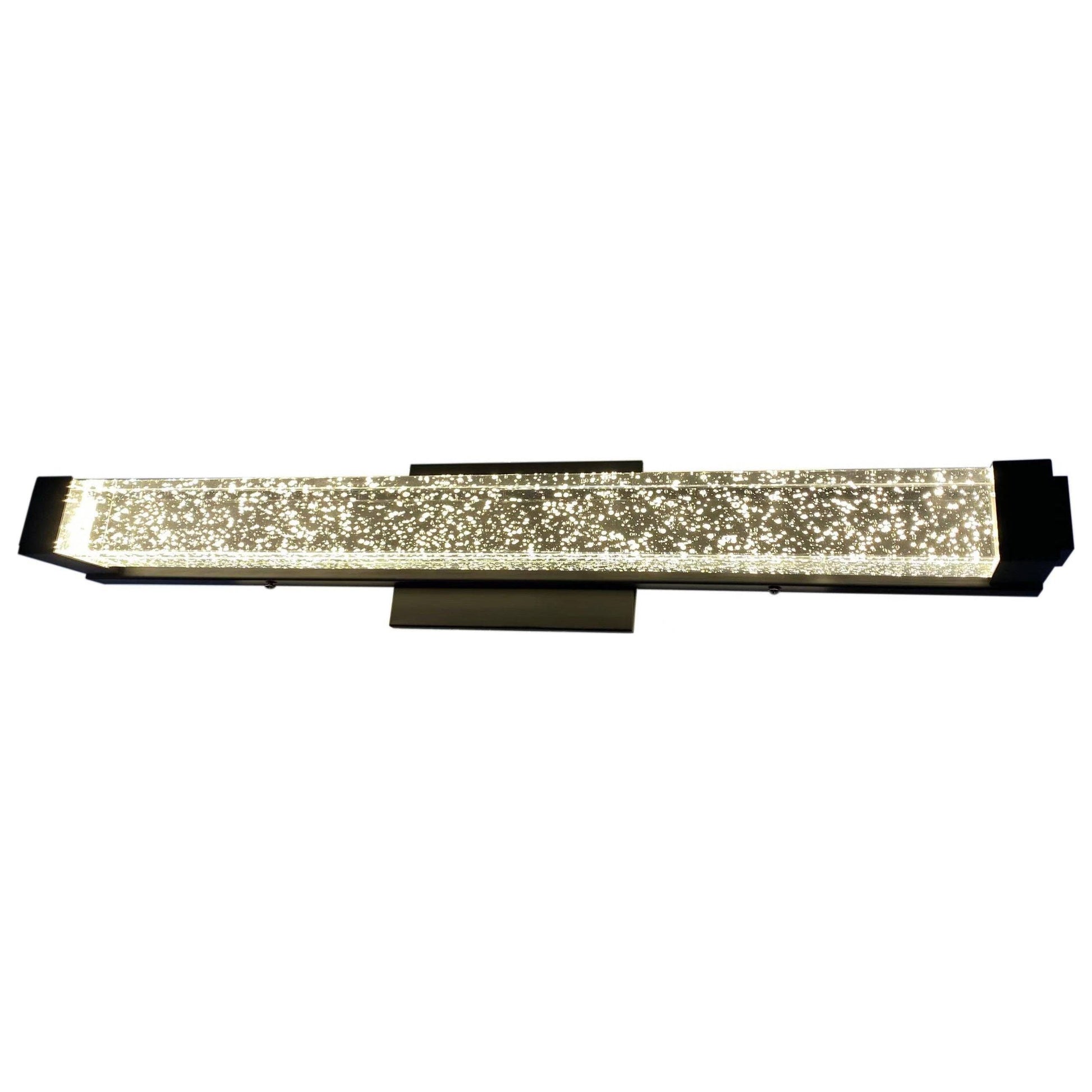

Bath Bar

SML429134-BK

BEFORE INSTALLATION

Inspect the fixture for any physical damage.

Confirm that all parts and hardware are included.
Test the fixture before permanent installation.

If you notice any damage, missing parts, or functional issues, DO NOT INSTALL the fixture. Please contact Sparkle Light at (905) 294-9191 or email showroom@sparklelight.ca for assistance.

DIMENSIONS

Fixture Size:

26.3"L × 4.72"W × 3.23"H (67 × 12 × 8 cm)

Chain Length:

No Chain

Rod Length:

No Rods

Wire Length:

Total Wire Length – 6" (15 Cm)

Overall Height:

Fixed height – 3.23" (8 cm)

Canopy Size:

"L×"W×"H (0×0×0 cm)

Canopy Shape:

Square

LAMPING

Bulb Base:

Integrated LED

Bulb Included?

Yes (LED Integrated)

Max. Wattage per Bulb:

Not Applicable

Bulb Count:

Fixture Total Wattage:

18 Watts

Input Voltage:

120V

Power Source:

Hardwired

Fixture Total Lumens:

1600 lm

Dimmable?

Yes

Colour Temperature (CCT):

3000KK

PRODUCT DETAILS

Assembly Required?

No assembly needed, ready to install

Material:

Metal Alloy, Glass

Residential Applications:

Bathroom, Vanity Area

Outdoor Applications:

Not specified

Commercial Applications:

Restaurant

Warranty:

1 Year

Shade / Diffuser Colour:

Fixture Style:

Modern – Clean lines, sleek design

Slope Ceiling Compatible?

Not compatible with slope ceilings

Fixture Shape:

Fixture Type:

Bath Bar

Mounting Surface:

Wall

Low Ceiling Compatible?

Not suitable for low ceilings

Fixture Finish:

Black

Location:

Damp (Bathroom)

Fixture Environment:

Certification:

cETL

INSTALLATION GUIDE

Print / Save as PDF

SPARKLE LIGHT

INSTALLATION GUIDE

Bath Bar

SML429134-BK

BEFORE INSTALLATION

Inspect the fixture for any physical damage.

Confirm that all parts and hardware are included.

Test the fixture before permanent installation.

If you notice any damage, missing parts, or functional issues, DO NOT INSTALL the fixture. Please contact Sparkle Light at (905) 294-9191 or email showroom@sparklelight.ca for assistance.

IMPORTANT SAFETY INFORMATION

Turn off power at the circuit breaker before installation or servicing.

Install the fixture only as specified in the provided instructions.

Installation must be performed by a licensed electrician.

MAINTENANCE & CARE

Clean with dry or slightly damp cloth.

Do not use abrasive cleaners.

PACKAGE CONTENTS

WIRING

Use standard wire connectors to make all wire connections.

Twist connectors until wires are tightly joined.

Wrap each connection with approved electrical tape and carefully stuff all the connected wires into junction box.
